Connectors (Electronic Circuits)
JST
Wire to Board

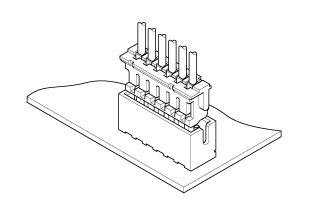

VH
- pin pitch; 3.96mm (0.156in)
- Current; 10A
- Voltage; 250V
- AWG; 22 ~ 16
- Lock

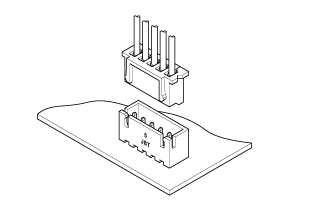

EH
- pin pitch; 2.50 mm(0.098 in)
- Current; 3A
- Voltage; 250V
- AWG; 30 ~ 22
- No Lock
XH
- pin pitch; 2.50 mm(0.098 in)
- Current; 3A
- Voltage; 250V
- AWG; 32 ~ 22
- No Lock

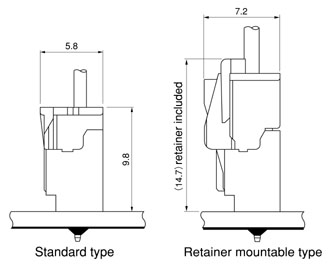

PA
- pin pitch; 2.00 mm(0.079 in)
- Current; 3A
- Voltage; 250V
- AWG; 28 ~ 22
- Lock
PH
- pin pitch; 2.00 mm(0.079 in)
- Current; 2A
- Voltage; 100V
- AWG; 32 ~ 24
- No Lock

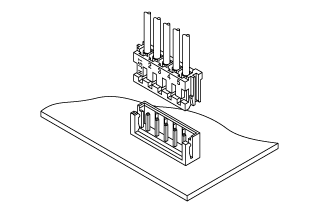

ZH
- pin pitch; 1.50 mm(0.059 in)
- Current; 1A
- Voltage; 50V
- AWG; 32 ~ 26
- No Lock

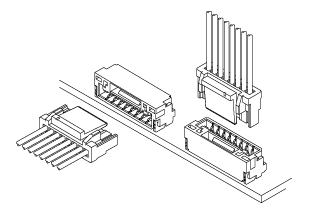

GH
- pin pitch; 1.25 mm(0.049 in)
- Current; 1A
- Voltage; 50V
- AWG; 30 ~ 26
- Lock
SH
- pin pitch; 1.00 mm(0.039 in)
- Current; 1A
- Voltage; 50V
- AWG; 32 ~ 28
- No Lock
Wire to Wire

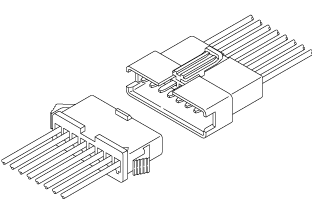

RCY
- pin pitch; 2.50 mm(0.098 in)
- Current; 3A
- Voltage; 250V
- AWG; 28 ~ 22
SM
- pin pitch; 2.50 mm(0.098 in)
- Current; 3A
- Voltage; 250V
- AWG; 28 ~ 22
MOLEX
5264, 5267, 5268, 5263, CHB0640, YMH025
- Pitch : 2.50mm
- Hole size: 0.9mm
- Wire Size: AWG #22~#28
- 대응되는 커넥터: MOLEX 5267-02AX(Straight), MOLEX 5268-02A(Angle)
- 대응되는 터미널: MOLEX 5263PBT9
- 대체되는 커넥터: 한림 커넥터 CHB0640-02, 연호 커넥터 YMH025-02 대체가능

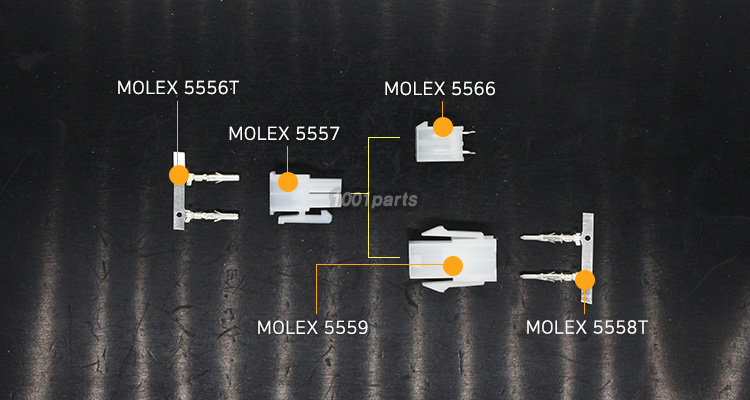

5557, 5566, 5556T, 5559, 5558T
- PC Power Supply
43025, 43020, 43030, 45773, 43031
- Receptacle;
- Housing 43025,
- Crimp terminal; 43030, 45773
- Plug;
- Housing 43020,
- Crimp Terminal 43031
- Kingroon KP3S Pro V2 - THR Board Cable (43025)
